Product Details
＋
SHIMS do not have a keyway

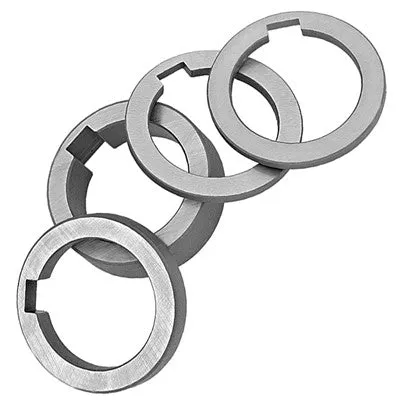

SPACERS do have a keyway
SPACERS do have a keyway
- Used for fast, accurate spacing of milling cutters, gang cutters, saws, slitting blades and grinding tools
- Made of high quality steel shim held to tight tolerances
- Packaged in air tight poly bags
- 10 pieces per bag (except assortments)
- Special sizes, material and bulk quantities available on request
- Below are sizes and thicknesses available
I.D. & O.D. sizes below are available with a keyway (spacer) and without a keyway (shim).
| I.D. x O.D. SIZES | KEYWAY SIZES | Sizes to the left are available in the following thicknesses: .001, .0015, .002, .003, .004, .005, .006, .007, .008, ,010, .012, .015, .020, .025, .031, .047, .062, .093, & .125 |
|---|---|---|
| 3/8" x 5/8" | 1/8" x 3/64" | |
| 1/2" x 3/4" | 1/8" x 3/64" | |
| 5/8" x 1" | 5/32" x 1/16" | |
| 3/4" x 1-1/8" | 3/16" x 5/64" | |
| 7/8" x 1-3/8" | 3/16" x 5/64" | |
| 1" x 1-1/2" | 1/4" x 3/32" | |
| 1-1/8" x 1-5/8" | 1/4" x 3/32" | |
| 1-1/4" x 1-3/4" | 5/16" x 1/8" | |
| 1-3/8" x 1-7/8" | 5/16" x 1/8" | |
| 1-1/2" x 2-1/8" | 3/8" x 5/32 | |
| 1-3/4" x 2-3/4" | 7/16" x 3/16" | |
| 2" x 2-3/4" | 1/2" x 3/16" |

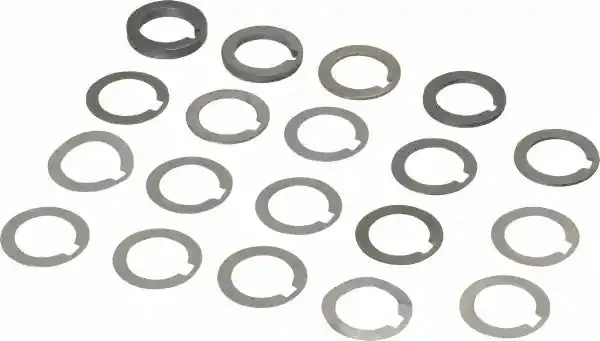

Assortments of one size and 19 thicknesses also available.
